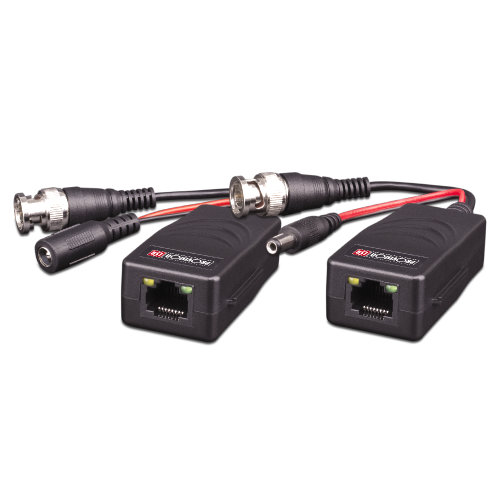

Provision-ISR Passive Video Balun w/ Power and Video, AHD

Item Code: PV-PTR-103VHP-HD

5MP HD Single Channel Passive Video + High-Power 12-36VDC Transceiver

5MP 4 In 1 support

15 (EA) in Stock

Status: In Stock

EA
Comments or instructions

Features

Features

  • Passive transmission – No additional power required
  • High-Power Input:12-36VDC, Power output: 12VDC Stable Output
  • Friendly “Tool Free” Terminal Connector
  • Built-in TVS for Surge Protection
  • 5MP 4in1 support: AHD / CVI /TVI / CVBS
  • Transmission Distance: AHD / CVBS / CVI / TVI- 200M (detailed info in specs file).
  • Anti Static Design
  • Wave Filter Design
  • Designed for Cat.5e/6 Cables

Specifications

Specifications

Specifications for: PV-PTR-103VHP-HD: Provision-ISR Passive Video Balun w/ Power and Video, AHD
ModelPTR-103VHP-HD
Input1Ch BNC +12-36VDC Power
Output1Ch BNC +12VDC Power
System FormatPAL /NTSC
Input Resolution Support5MP and Lower
Input Signal Support4 in 1 (AHD /CVI /TVI /CVBS)
5MP180m (AHD/TVI)
4MP180m (AHD/TVI)
2MP200m (AHD/TVI) /230m (CVI)
1MP320m (AHD) /250m (TVI) /440m (CVI)
960H and Lower200m
Attenuation1.5db Max
WiringCat5/5e/6 crimped cable (RJ-45)
Surge Protection2KV
Work Environment-20°C-70°C, 0%-90% Humidity
Power SourceNot Required (Passive Unit). Power is required for powered device only.
DimensionsCamera/DVR Side -73x29x20mm +113mm Wire
Net Weight60g
