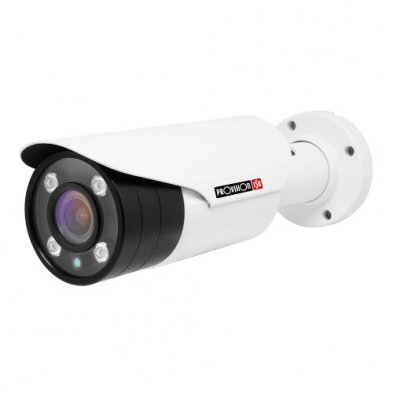

| Specifications for: PV-I4-280AMVF: Provision-ISR 8MP Bullet 4 in 1 Analog MVF 2.7-13.5mm Lens w/ 40M IR Camera – White |
|---|
| MODEL | I4-280AMVF |
| Image Sensor | 1/2.5" CMOS |
| Image Format | 8MP - 16:9 / 5MP - 4:3 / 4MP - 16:9 / 2MP - 16:9 |
| Effective Pixels | 3864(H)x2202(V) |
| Scanning System | Progressive |
| Resolution | 8MP: 3840x2160 @ 15FPS, 5MP:2592x1944 @ 20FPS, 4MP: 2560x1440, @ 25FPS, 2MP@25/30FPS, CVBS@25/30FPS |
| Min. Illumination | 0.1Lux (0 Lux with IR on) |
| Day & Night | True Day&Night (ICR) |
| IR LED | 4 LED Array (40m) |
| OSD Menu | Available via CoC Only |
| CoC Support | Yes |
| Day & Night Mode | EXT, Color, B&W |
| Backlight Compensation | Off / BLC |
| S/N Ratio | ≥50dB (AGC Off) |
| White Balance | ATW, Manual |
| Noise Reduce | 3D-DNR |
| Video Output | 8MP / 5MP / 4MP / 2MP (Selectable by OSD Menu); AHD/TVI/CVI (4MP Only)/ CVBS + PAL/NTSC (Selectable by DIP Switch on cable) |
| Defog | Not Available |
| Privacy Mask | Not Available |
| Motion Detection | Not Available |
| D-Effect | Mirror |
| Lens (Field of View) | 2.7-13.5mm Motorized VF with Auto Focus - Control over CoC only |
| Power | DC12V±10%, ~450mA |
| Operation Temp. | -30°C~+50°C |
| Waterproof | IP66 |
| Dimensions | 286*77*85.6mm |
| Net weight | 836g |
