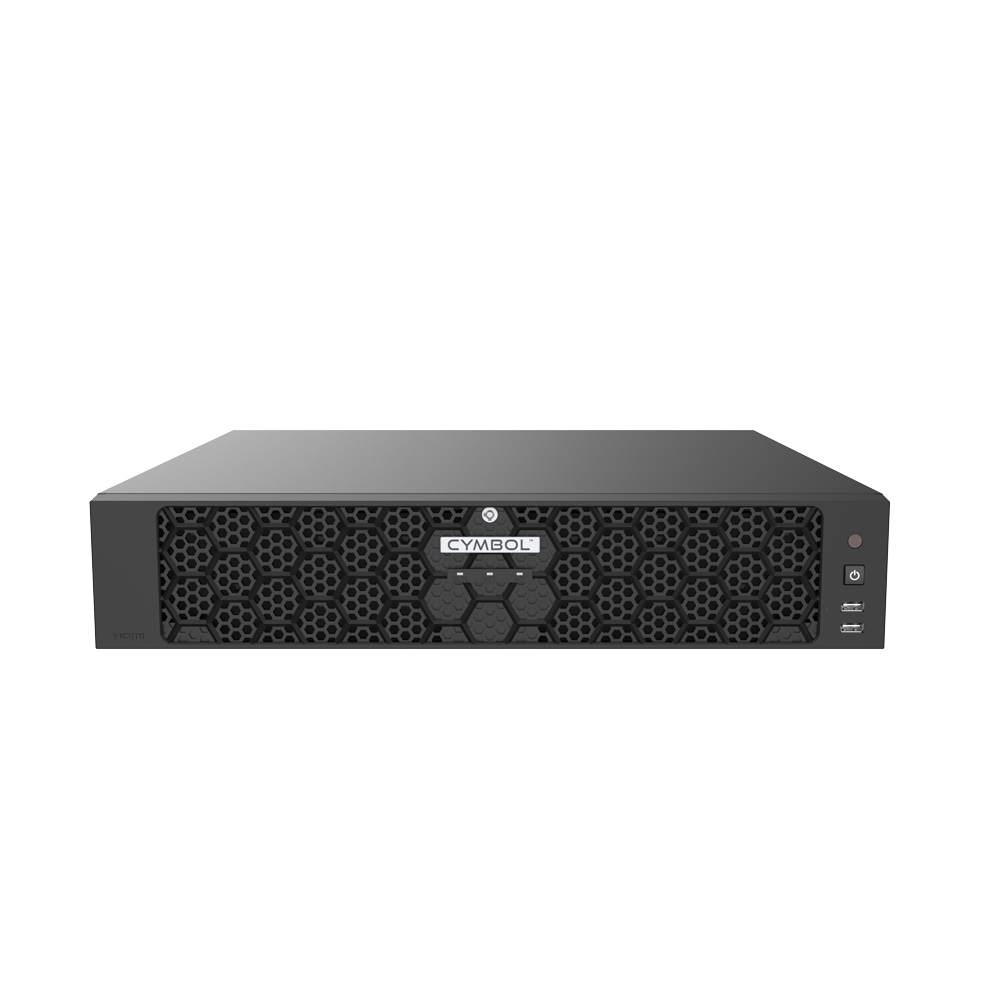

| Specifications for: CY-NVR4K-64RAID-V2: Cymbol 32MP H.265 NVR 64CH RAID 16/10 Alarm 8 SATA |
|---|
| VIDEO/AUDIO INPUT | IP Video Input | 64-channel |
| Two-way Audio Input | 1-ch, RCA |
| NETWORK | Incoming Bandwidth | 384Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS, SNMP,SMTP,NFS,RTSP,802.1x,IPV6 |
| Browser | IE(IE10/11) for Windows, Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows, Edge(version 79 and above) for Windows |
| VIDEO/AUDIO OUTPUT | HDMI/VGA Output | HDMI1, HDMI2: 4K(3840x2160)/60Hz, 4K(3840x2160) 30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA1, VGA2: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output | 2-ch, RCA |
| Liveview display | HDMI1/VGA1: 1/4/6/8/9/16/25/36/64,HDMI2/VGA2:1/4/6/8/9/16/25/36 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| SNAPSHOT | FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080p resolution |
| DECODING | Decoding format | Ultra 265/H.265/H.264 |
| Capability | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30,
16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30 |
| HARD DISK | SATA | 8 SATA interface |
| Capacity | Up to 16TB for each disk |
| Disk Array Type | RAID 0,1,5,6,10 |
| SMART | VCA Detection by IPC | Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection,Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection,Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata,Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, General Search, People Counting Report, Heat Map |
| Smart by IPC | Total 16-ch (Vehicle Detection,Temperature Detection, SIP, UMD, Video Metadata,Traffic Monitoring) |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| GENERAL ALARM | General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Video Loss Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict,Network Disconnected,Disk Offline,Disk Abnormal,Illegal Access, Hard Disk Space Low,Hard Disk Full,Recording/Snapshot Abnormal |
| EXTERNAL INTERFACE | Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0 |
| RS232/RS485 | 1/1 |
| Alarm In/Alarm Out | 16-ch/10-ch |
| eSATA | 1 |
| GENERAL | Power Supply | 100 ~ 240 V AC |
| Power Consumption: ≤ 50W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 442mm × 448mm × 93mm (17.4” × 17.6” × 3.7”) |
| Weight (without HDD) | ≤ 6Kg (13.23lb) |
| CERTIFICATION | Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
